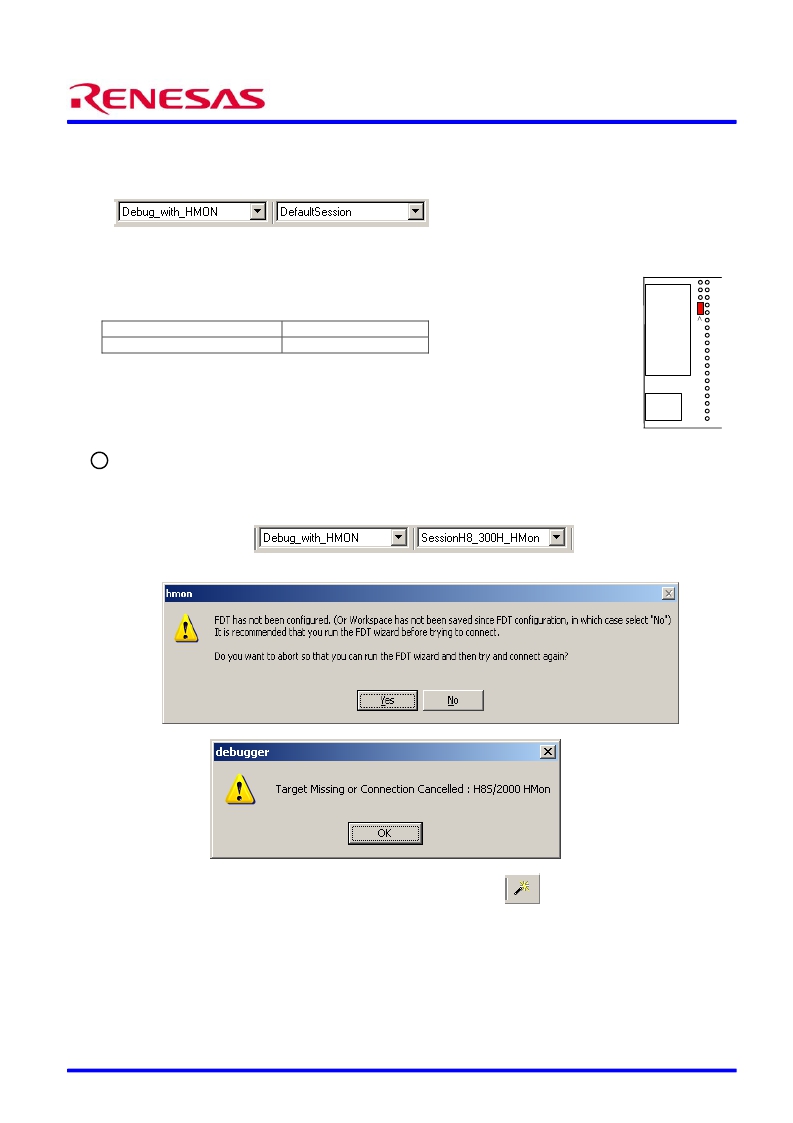

3DK2218U Quickstart Guide

2

You will see a list of project files appear in the Workspace window, showing that the Project Generator has created the

project for you.

Now build the tutorial program and integrated HMon monitor:

? Ensure that the project workspace is set to the following:

?

?

Select the " Build ", " Build All " menu item to build the program.

When the build is complete, proceed to the next section to program your 3DK with the project.

Before applying power to the board, please ensure that jumper J10 is fitted as follows (Pin 1 is

indicated by an arrow on the silk-screen):

PIN CONNECTIONS

9 - Way

D - Type

J10 (RS232 Rx Jumper)

Fitted (1 – 2)

Power

3 Programming the Board

1) Ensure that the 3DK is connected to COM1, the USB cable connects the 3DK to the pc and power is applied to the

3DK.

2) Change to the debug session by choosing “ SessionH8_300_HMon ” from the drop down session menu.

3) If prompted to save session, click “ No ”.

4) The following dialog may appear (if it does not appear, please go to step 5):

Click "Yes" to proceed. The following dialog will appear:

Click "Ok" to continue with configuring the FDT.

5) Click on the magic wand in the control bar, to ensure FDT is configured.

6) If FDT has not been set up then the FDT configuration wizard will appear. Follow steps below to setup FDT. If FDT

is configured, proceed to step i. to verify the settings.

Renesas Technology Europe Ltd.

D005316_11_v01
